86″ Large 4K Touch Screen
86’’ Interactive 4K LCD Touchscreen with integrated annotation software and USB playback

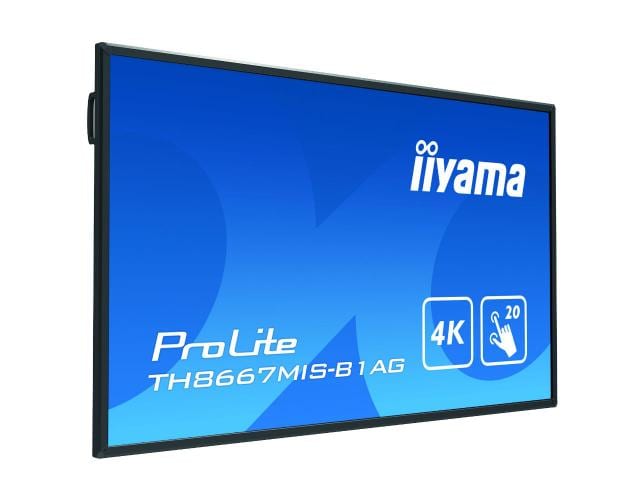

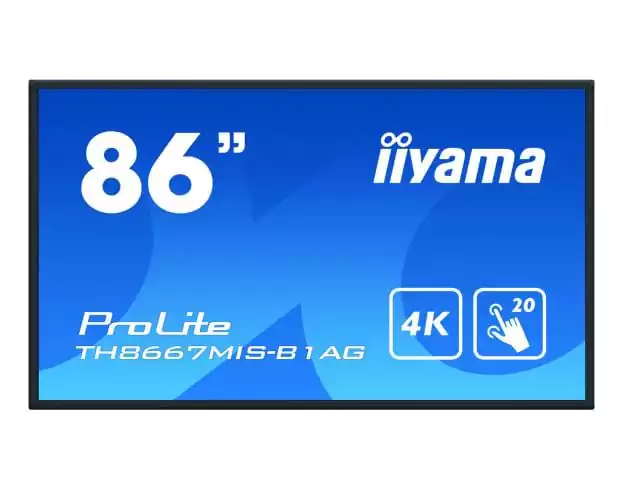

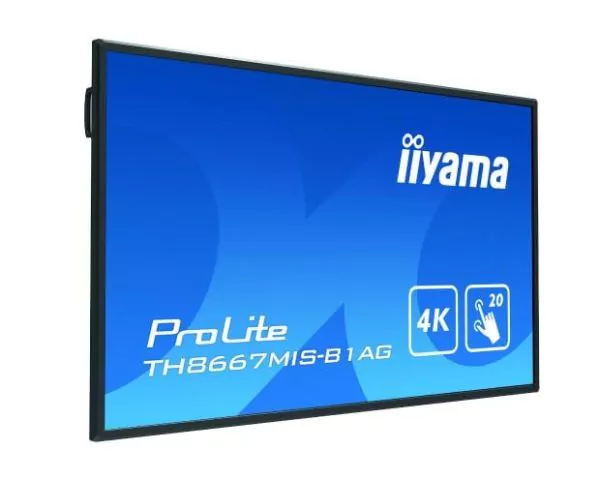

The TH8667MIS-B1AG is an 86’’, 20-point touchscreen with integrated interactive EasiNote writing software allowing users to make annotations on files opened directly from a USB device or internal storage. The 4K (3840 x 2160) resolution offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. The display supports also playback of presentations, video and almost any other type of content stored on the USB device or internal memory.
Infrared technology – uses infrared backlight. A touch event is registered with great accuracy when the infrared light is blocked by finger or stylus.
Playback – The monitor supports playback of presentations, video and almost any type of content stored on the USB device or internal memory.
Perfect For

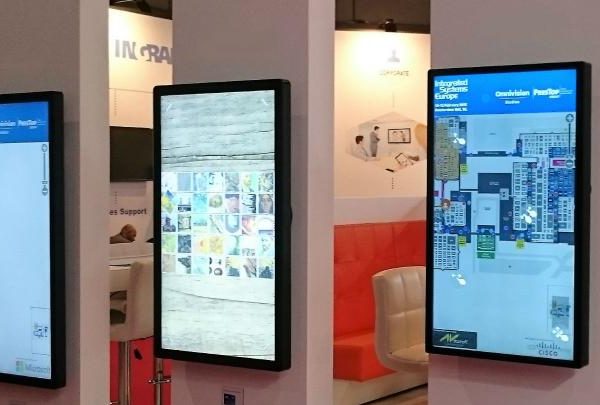

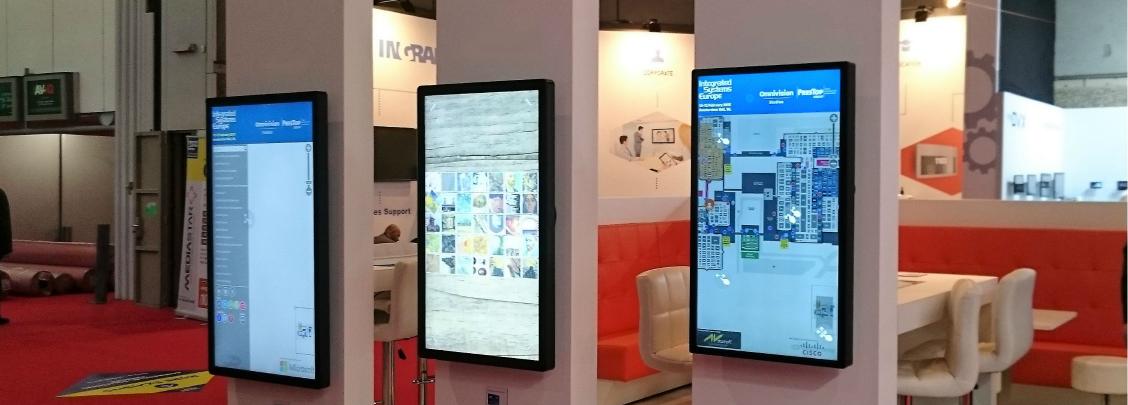

Exhibition stands, retail shops, events, product launches, app launches, website launches.
Key Features
-Plug & Play VESA DDC2B™
-Controls On-Screen-Display in 8 languages (EN, FR, NL, DE, PL, RU, CZ, IT) controlled by side controls or a remote control
-User controls general setting (input, auto, volume, brightness), audio setting (volume, bass, treble, balance, sound mode, mute), screen setting, display setting –(brightness, contrast, hue, sharpness, picture mode, colour temp.), adjust setting (horizon adjust, verticle adjust, phase adjust, clock adjust, auto), advanced setting (ethernet checking, display, storage, apps, language&input, date&time, startup & shutdown, floating style setting, password, input setting, about)
-Speakers 2 x 10 W (Stereo)
-Regulations CE, CB, CU, TÜV-Bauart
-Extra Functions integrated, interactive annotation tools and applications allowing to browse the Internet, show documents, presentations, video, etc.
-VESA mounting 800 x 600 mm
-Colour Black
-External controls remote control
-Orientation landscape
-Metal bezel yes
-EasiNote yes
INTERFACES / CONNECTORS / CONTROLLERS
Video IN 2x VGA, 2x HDMI 1.3, HDMI 2.0, DisplayPort, Comp. (MiniJack), AV
Video OUT HDMI
Audio IN 2x MiniJack
Audio OUT Coax, MiniJack, speakers
Controls RS232C, RJ45 (LAN for Android), USB (touch)
USB Media Playback yes
other LAN for Android, 2x USB 2.0 (media playback / peripherals / storage)
TECHNICAL SPECIFICATION
Diagonal 85.6″; 217.4cm
Aspect ratio 16 : 9
Panel IPS Direct LED, AG coated glass
Native resolution 4K 3840 x 2160 ( 8.3 megapixel)
Brightness 375 cd/m² typical
Brightness 330 cd/m² with touch panel
Static contrast 1 200 : 1 with touch panel
Response time 8 ms
Viewing zone horizontal/vertical: 178°/ 178°; right/left: 89°/ 89°; up/down: 89°/ 89°
Touchtechnology infrared, multi touch (20 compatible touch points – HID, only with supported OS) activated by finger or pen, no pressure required to generate touch
Touch Points 20
Glass thickness 4 mm
Glass hardness 7H minimum
Light transmittance 88%
Display area h x w 1065.96 x 1895.04 mm; 42″ x 74.6″
Pixel pitch h x v 0.4935 x 0.4935 mm
Resolutions VGA (max. 1920 x1080), HDMI v1.3 (max. 3840×2160 @30Hz), HDMI v2.0 (max. 3840 x 2160 @60Hz), DP (max. 3840 x 2160 @30Hz)
Horizontal sync 30 – 83 KHz
Vertical sync 24 – 75 Hz
Synchronization Separate Sync
Display colours 10.7 B
Max. non-stop operating time 24 hours/day
