The Tessera SK40 is a full 4K LED video processor that combines Tessera’s industry-leading feature set and easy-to-use software interface with our highest-ever capacity processor.

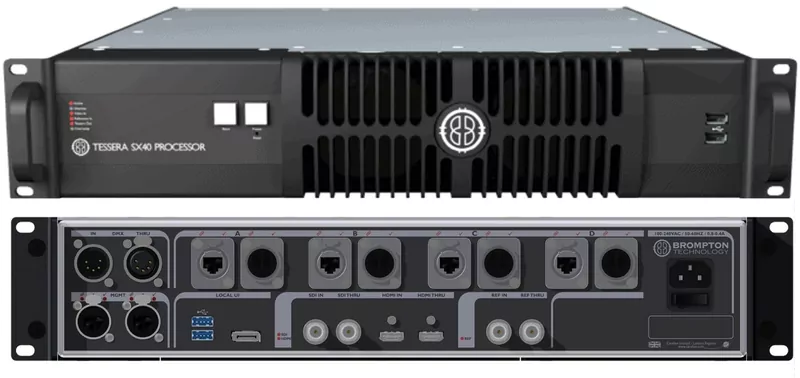

The award-winning SX40 4K Tessera SX40 LED processor combines our industry-leading feature set and easy-to-use software interface with our highest-ever capacity processor.
Tessera SX40 offers support for full 4K screens at 60Hz with 12 bits per colour output. It supports a zero-latency up/down scaler that matches the source to the screen as well as all of Tessera’s industry-leading processing features. These include HDR and Dynamic Calibration as well as Extended Bit Depth, HFR+ (High Frame Rate), Frame Remapping, and more. Additionally, Stacking can be used to control multiple SX40 processors as one.
Features
- Inputs: 12G-SDI with reclocked thru port, HDMI 2.0 with reclocked thru port, & Genlock reference with buffered thru
- Full 4K 4096 x 2160 resolution
- Zero-Latency Scaler
- Zero-Latency ChromaTune
- Up to 9 Million Pixels at any bit depth and framerate
- 1:1 pixel alignment for perfect mapping of input pixels to LEDs
- 100 – 240V AC
- 50Hz – 60Hz
- 1.2 – 0.6A
- Dimensions (W x H x L): 19″ x 3.5″ x 16″
